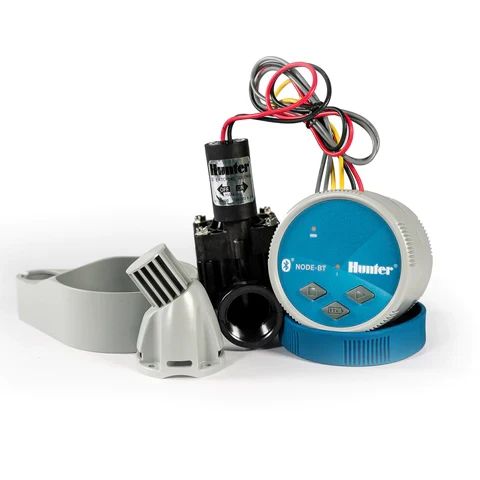

The Hunter NODE-BT-100-VALVE-B combines a Bluetooth battery controller and a valve in one ready-to-use unit: the NODE-BT comes factory-mounted on a PGV-101G-B valve (European version, 1" (25 mm) female BSP threads) with its DC latching solenoid. Connect the water, insert one or two 9 V alkaline batteries, pair your phone over Bluetooth 5.0 (BLE) with the NODE-BT app (iOS 9.0+ / Android 5.0+) and program your watering from up to 15 m away. You get 3 programs with 8 start times each, run times from 1 second to 12 hours, seasonal adjustment and a suspend function of up to 99 days. The controller is IP68 submersible, ready for buried valve boxes. The PGV valve has built-in flow control, handles 0.05 to 9 m³/h (0.7 to 150 l/min) at 1.5 to 10 bar and withstands 66 °C. A smart, wire-free solution for isolated beds, planters and remote garden zones.
Technical specifications
- Model: NODE-BT-100-VALVE-B
- Stations: 1
- Included in the unit: NODE-BT controller mounted on PGV-101G-B valve, DC latching solenoid
- Valve: PGV-101G-B, with flow control
- Valve connection: 1" (25 mm) female BSP threads
- Valve flow: 0.05 to 9 m³/h (0.7 to 150 l/min)
- Operating pressure: 1.5 to 10 bar
- Temperature rating: 66 °C
- Power supply: 1 or 2 x 9 V alkaline battery
- Connectivity: Bluetooth 5.0 (BLE), range up to 15 m
- App: NODE-BT (iOS 9.0+ / Android 5.0+)
- Programs: 3 programs, 8 start times each
- Run time: 1 second to 12 hours
- Output voltage: 9–11 VDC
- Controller protection: IP68 (submersible)
