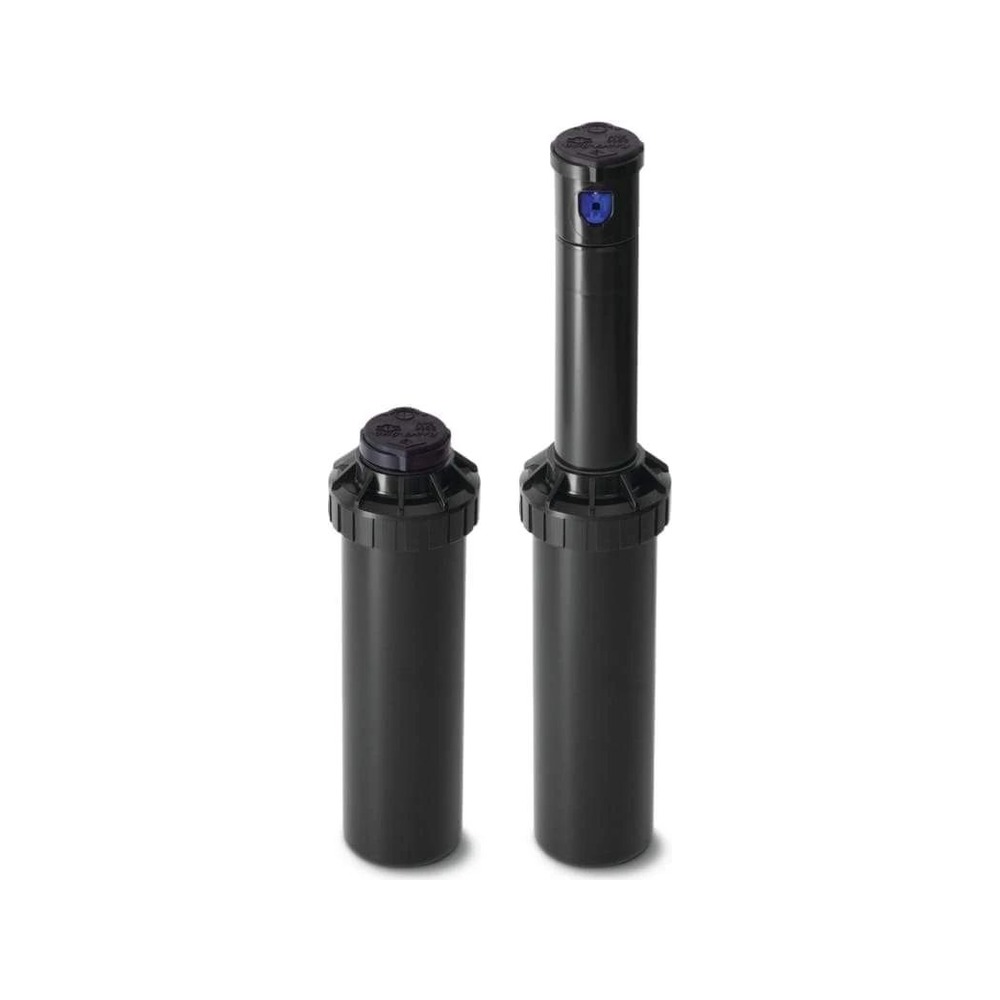

Rain Bird 3504PC Rotor Sprinkler

The Rain Bird 3504PC is a compact 4 in pop-up rotor with a water-lubricated gear drive, ideal for small and medium lawns where a standard spray would fall short. Its arc is adjustable from 40° to 360° from the top with a flat-blade screwdriver, and the self-adjusting stator means nozzles can be swapped without replacing any part. It reaches a 4.6–10.7 m radius at 1.7–3.8 bar, with a precipitation rate of 9–18 mm/h. Delivered with a nozzle tree of Rain Curtain nozzles and a removable filter screen. A reliable, long-lasting rotor for residential gardens. Its compact body fits tight residential layouts, and the radius reduction screw lets you fine-tune throw distance without changing nozzle, saving water and avoiding overspray onto paths and walls.

Technical specifications

• Brand: Rain Bird
• Model: 3504PC
• Arc: 40-360°
• Radius: 4.6–10.7 m
• Operating pressure: 1.7–3.8 bar
• Flow: 0.12–1.04 m³/h
• Precipitation rate: 9–18 mm/h
• Pop-up height: 10.2 cm (4 in)
• Inlet: 1/2"
• Included: 1 rotor with nozzle tree
• Type: Pop-up rotor sprinkler
